Key Features ● Lightweight and compact for easy transportation and installation ● Easily mountable on a wall or pedestal ● High DC current over wide voltage range for faster charging ● Feature-rich and remotely controllable via the mobile appPay using UPI, payment wallets, credit card etc. ● Connect using WiFi or GSM ● OCPP 1.6J compliant ● Very low stand-by power ● >95% energy efficiency ● Intuitive user experience ● ​Power configuration in 15 kW increments ● Intuitive status display ● Tamper proof ● Durable and weatherproof ● 24/7 customer support Key Technical Specifications ● CCS2, CHAdeMO, GB/T, & 22 kW AC Type 2 outputs ● Display: 7” Colour LCD Display ● Input Voltage: Three Phase 415V, 45-65Hz ● Input Wires: Three Phase 4 AC Wires (L1, L2, L3, N & PE) ● DC Output Voltage: 20-120V DC ● Output Rating: 15 kW ● Protection: Overcurrent, Overvoltage, Undervoltage, Ground Fault, AC Residual Current Protection, Surge Protection ● IP Rating: IP54 water resistant ● Network: Ethernet or SIM and OTA support ● User Authentication: RFID, Mobile App● Cable Length: 5m ● Push Button: Emergency Stop ● Operating Temperature: -40°C to 55°C● Mounting: Wall or Stand ● Material: Metal ● Dimension (H*W*D): 590 * 610 * 270 mm (excluding pedestal) ● Weight: 80 kg approx ● Warranty: 12 months standard warranty. AMC options available afterwards ● Software: Data management and user authentication with mobile app (Android & iOS)

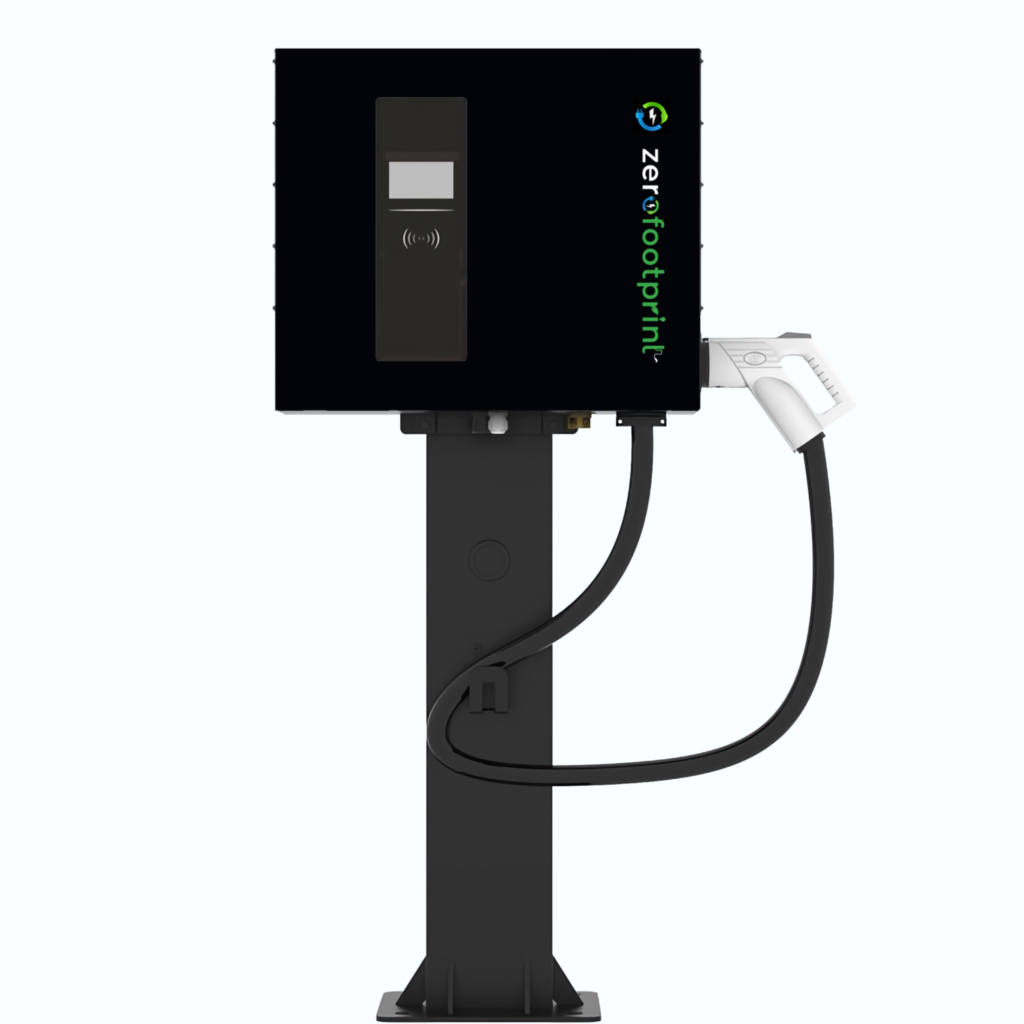

15 kW BHARAT DC001 Charger
Level 3 Charger | DC – 15 kW (415V AC) 100A | GBT/CCS 2 Charging Connector

12,000


Product Description

Designed to revolutionise your electric vehicle charging experience with its powerful charging capabilities, this advanced charger combines speed and efficiency, making it perfect for residential and public locations alike.

1 Hour Charge Range: 75 km*
Maximum Power: 15 kW
Connector Type: GBT or CCS 2
Vehicle: 4 Wheelers
Installation: Highways, Commercial Spaces, Hospitality and Retail
Models: 15 kW Single Gun, 15 + 15 kW Dual Gun, 15 + 15 kW DLM

Brand: ZeroFootprint
White label Options: Yes
Charge Point Operator: Yes

*Calculations are approximations based on the average consumption per 100 km. Actual consumption depends on the vehicle, battery size and driving conditions.
