Key Features ● IEC 61851 proximity pilot circuit testing ● Control pilot circuit testing ● Charging state testing ● Protective earth testing ● CP-Earth fault testing ● Cable current setting ● Extra cable capacitance option ● Earth leakage check via LED indication ● Banana socket output for CP waveform capture ● Energy, voltage and current parameter display in charging state only ● External single phase 15A (Max) load can be attached via available 3-Pin socket ● Banana socket outputs for 3-Phase external load connection up to 15 Amp ● Using an oscilloscope, every vehicle state according to IEC 61851-1 can be visualised Hardware Requirement ● Type 2 AC Charger with Socket or Plug ● Type 2 to Type 2 cable In case of Socket ● External CRO to capture PWM signal waveform ● Banana plugs for jumper connection ● External 1-phase or 3-phase load up to 15A current capacity

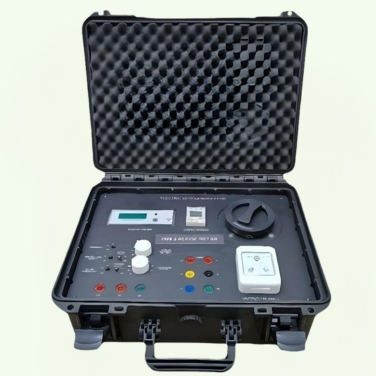

AC EVSE Test Kit
Test mode 2 & 3 protocol AC charge points with a Type 2 connection

70,000


Product Description

An EV simulator serves as a control system for electric vehicles, commonly used to validate the operation of the charging station and verify that the fundamental functionalities are being performed correctly. Specifically, the AC EV Simulator is capable of simulating charging points equipped with a Type 2 outlet or a tethered cable featuring a Type 2 plug. These tests are conducted by interfacing with the control pilot circuit using the EV simulator, ensuring compatibility and adherence to voltage tolerance limits during regular operations.
